  • ZWO Color CMOS Camera ASI071MC Pro cooled - Chip D=28.4 mm

    • Číslo produktu: ASI071MCPRO
    • Výrobca: ZWOptical
    • Váha dodávky: 0.5 kg

    Naša cena: 2990.00 €
    3-5 dní
    Doprava zadarmo!

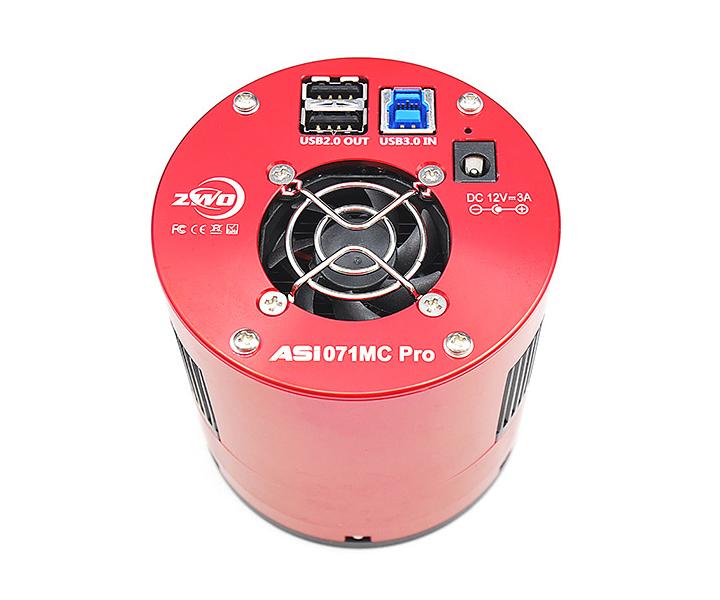

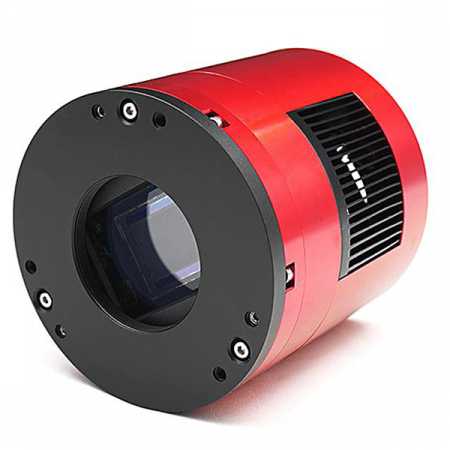

ZWO ASI071MC PRO Cooled - Peltier-cooled Color CMOS Camera for astrophotography

ASI cameras stand for a very good workmanship and feature up-to-date CMOS sensors. Now, ZW Optical makes these outstanding cameras available for deep-sky photography, too. A powerful Peltier cooling provides cooling up to 40 °C below ambient, allowing smooth exposures without noise.

With 28.4 mm sensor diameter and 4.74 µm pixels, the ASI071MC Pro color camera offers a very high detail resolution with a large image field at the same time. The sensor has a similar diameter as the one of APS-C format DSLR cameras, but it is far more powerful.

With this, you can photograph an entire galaxy cluster and show details of the single galaxies at the same time. The camera is especially suitable for fast, high-resolution optics like apochromats or FastStar systems. Even with shorter focal distances, outstanding astro images are generated.

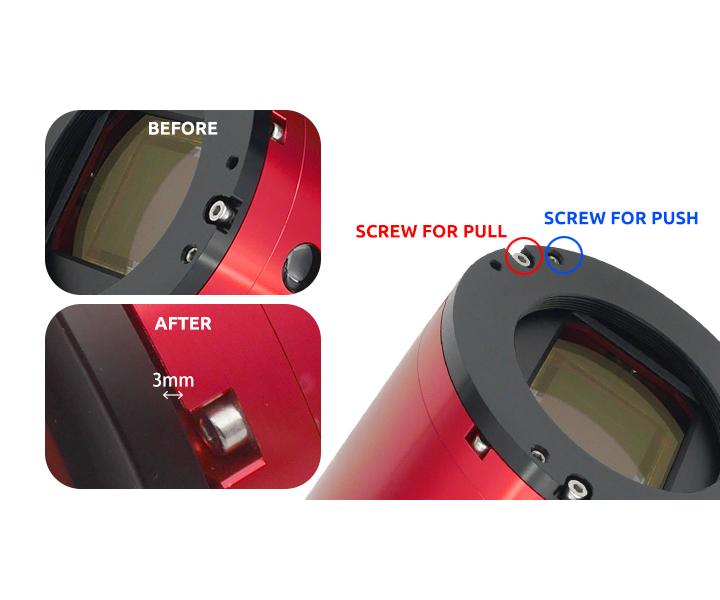

Large sensors with rather fine pixels require good adjustment to avoid tilt between sensor plane and image plane. For this, the ASI071MC-Cool has an adjustable connection plate which makes an additional adjustment flange with its optical path obsolete.

The "single shot" color camera offers more comfort, compared with MONO cameras. Not everyone wants to follow through the laborious L-RGB technique for beautiful colored nebula images. The color cameras offer a possibility to get beautiful images without changing filters. However, good broadband nebula filter (see accessory recommendation) reduce stray light and enhance contrast without the necessity of being changed or coloring the image too much.

Advantages and features of the ASI 071 PRO camera:

♦ USB 3.0 for a fast download - can also be used with USB 2.0
♦ DDR3 256MB buffer memory for better dark noise (feature of the new PRO series)
♦ Powerful Peltier cooling up to 40 °C below ambient temperature
♦ Sensitive modern SONY IMX071 CMOS sensor with 28.4 mm diameter - 16 megapixels
♦ High resolution through 4.78 µm pixels
♦ Shutter: Rolling Shutter
♦ Distance from T2 connection thread to camera sensor: 17.5 mm
♦ Adjustable connection plate - locked against unintended unscrewing
♦ Comes with AR-coated clear glass window - full transmission even in infrared. If IR should be blocked, an IR blocking filter is necessary.
♦ Anti-dew heating integrated against icing (feature of the new PRO series)

Application ranges of the camera:

♦ Deep sky images (nebulae and galaxies): Due to the high sensitivity, nebulae and galaxies are captured after only a few seconds. By cooling down the camera up to 40 °C below ambient, the already low noise can be further reduced. By increasing gain (like the ISO setting of DSLR cameras), you can reduce exposure times below 30 seconds. Effects from seeing or inaccuracies of the drive are eliminated.

♦ Lunar and planetary images: extremely short exposure times (due to high sensitivity) freeze the seeing. Through the high resolution of the sensor, many details can be reproduced even at shorter focal length. Video astronomy is also possible.

Optimal support by Teleskop-Service before and after purchase:

We work with the cameras ourselves and can offer you optimal advice. Which camera matches your telescope, how do you achieve optimal adaption ...

Teleskop-Service is one of the biggest ZWO dealers. Due to our contacts, we offer best possible service also after purchase.

Downloads, Drivers:

ZW Optical supplies software and drivers online for free download.

Software and drivers for all ZWO cameras

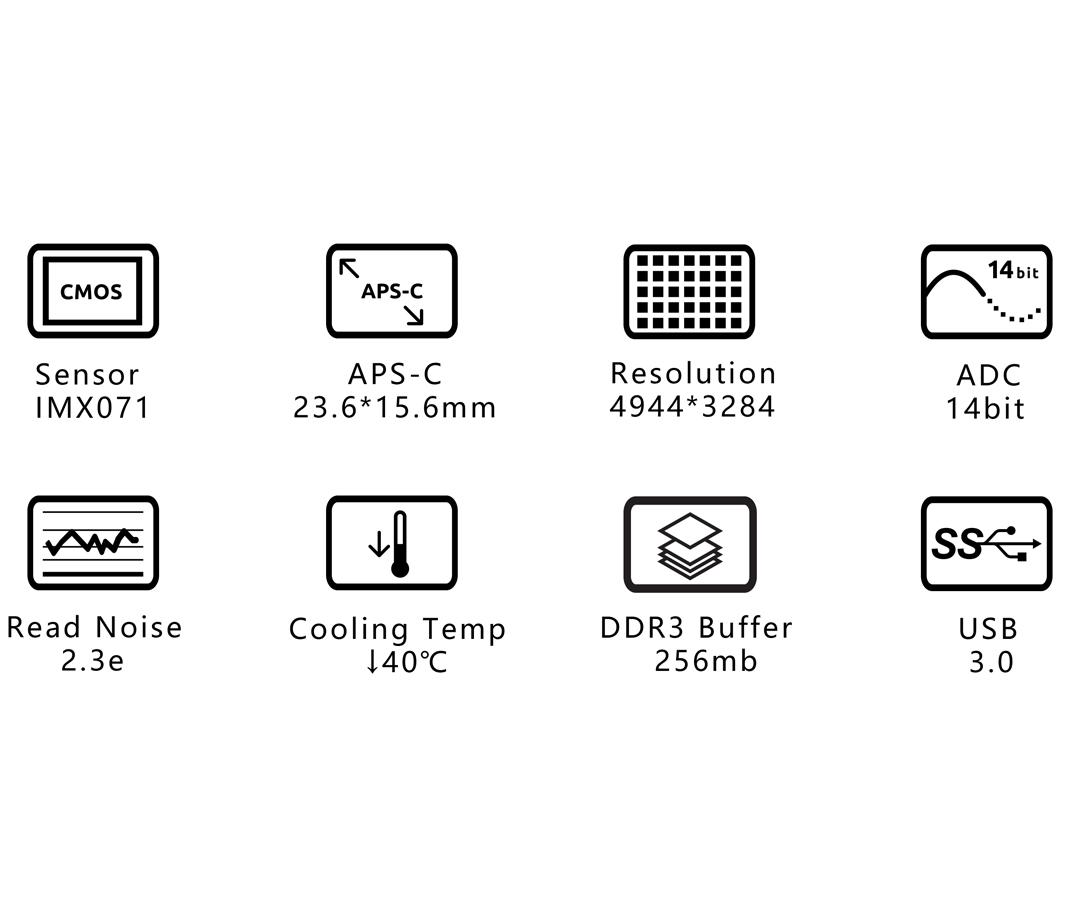

Sensor: SONY IMX071 CMOS colour sensor
Diagonal: 28.4 mm
Resolution: 16 Mega Pixels, 4944x3284
Pixel Size: 4.78 µm
Shutter: Rolling shutter
Exposure Range: 64 µs to 2000 s
ROI: Supported
Cooling: Regulated Two Stage TEC
Delta T: 40 degree below ambient
Cooler Power consumption: 12 V at 3 A max
Protect window: AR window
Software requirements: USB 3.0 should be supported by operating system
ADC: 14 bit (also 14 bit output)
Interface: USB3.0/USB2.0
Telescope connection: T2, 2" and 1.25"
Back Focus Distance: 17.5 mm
Front plate: With tilt adjustment

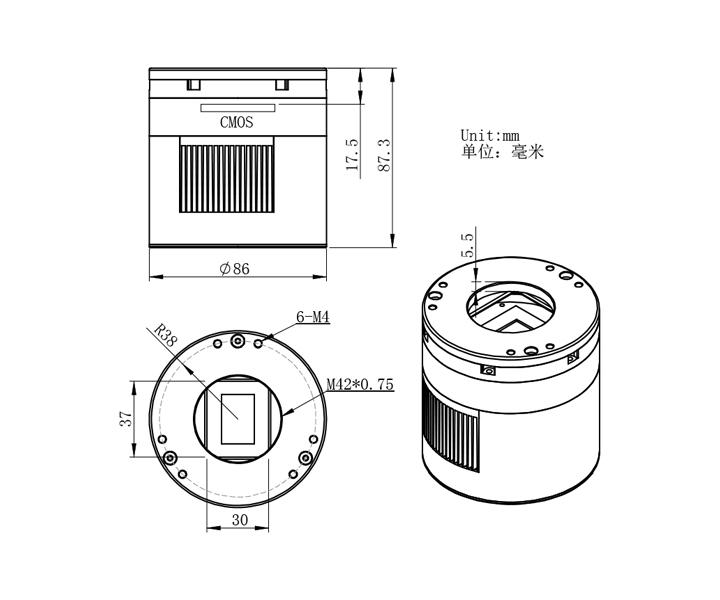

Dimensions: 86 mm diameter, 87.3 mm length
Weight: 500 grams

Supported resolution (14Bit ADC):

4944×3284 10fps:
1920×1200 28fps:
1280×1080 33fps:
640×480 70fps:
320×240 134fps:

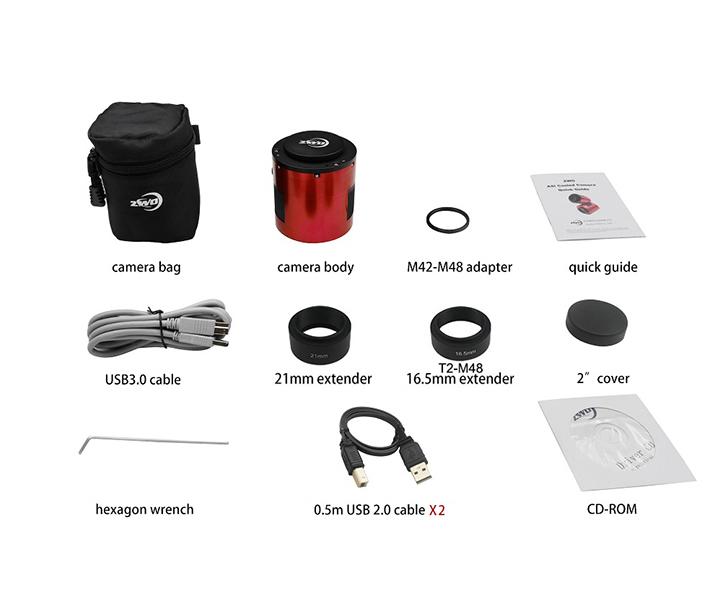

Kompletizácia:
♦ ASI camera
♦ Storage bag for camera
♦ T2 extension, 21 mm - outside diameter 2"
♦ M48 to T2 adapter, 16.5 mm - outside diameter 2"
♦ M48 to T2 adapter ring w/o optical length
♦ Desiccant tablets
♦ USB cable (2x short, 1x long)
