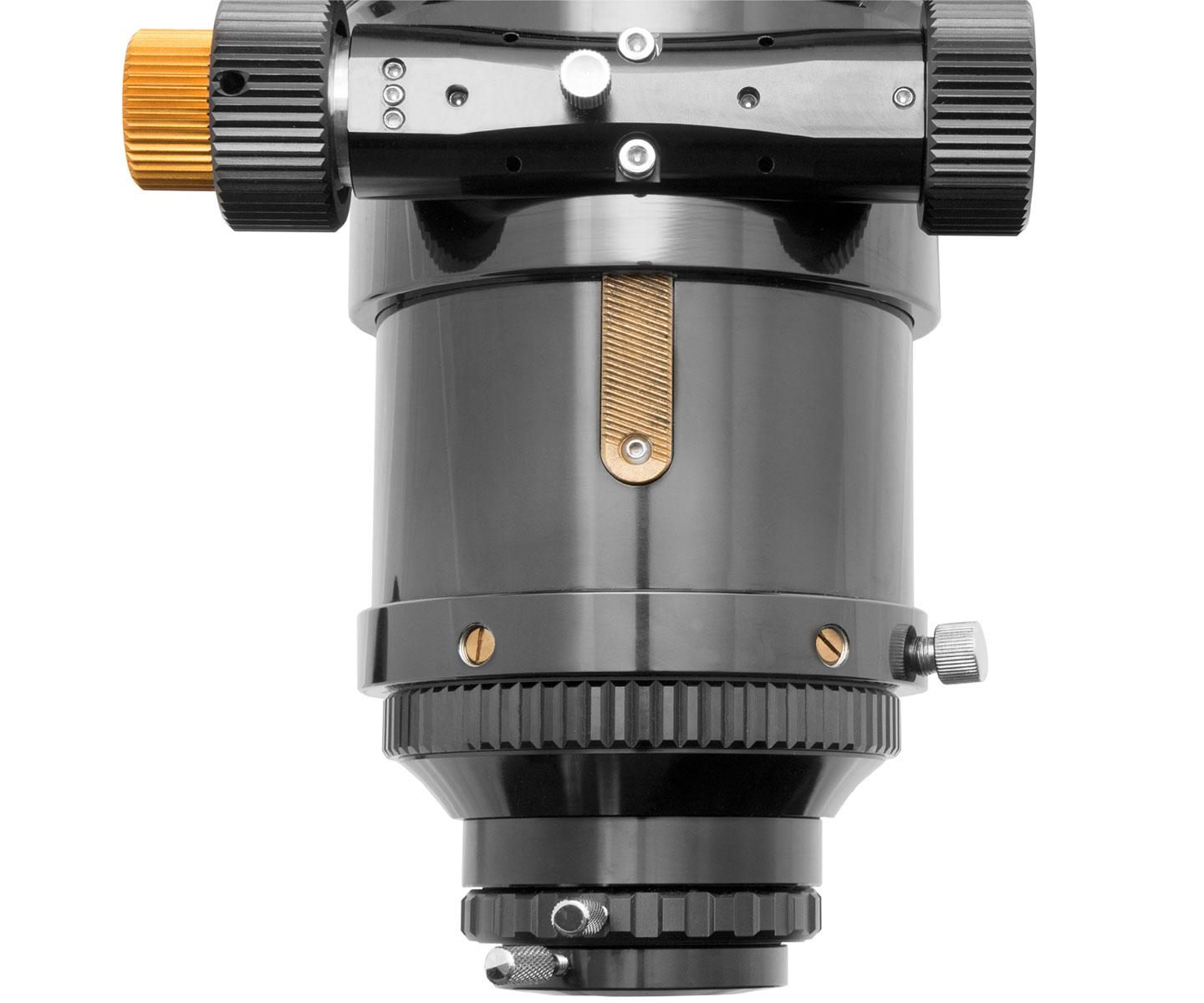

TS-Optics 3.7" RAP Focuser
The quality of this focuser comes close to the well-known Feather Touch focusers from Starlight. The large focuser allows even using full-frame size and medium-format cameras without vignetting, of course with suitable correctors.
♦ Drawtube with rack & pinion drive - no friction - no bending like the Crayford focuser.
♦ Internal baffles against reflections
♦ Clear aperture: 102 mm
♦ Drawtube travel: 98 mm
♦ 360 Rotation for optimal selection of the field of view
♦ Self centering 2″ and 1,25″ adapter for correct clamping on the optical axis.
♦ Connection thread for photo adaptions: M100x1 thread (female), M92x1 thread (female), M68x1 ZEISS style thread (female)
Lengths, retracted, measured from beginning of the 117 mm female thread:
♦ 103 mm to the end of the internal M100 thread (no rotation possible)
♦ 130 mm to the end of the internal M92 thread (rotation possible from here on)
♦ 142 mm to the end of the internal M68 thread
♦ 163 mm to the end of the 2″ adapter
♦ 172 mm to the end of the 1,25″ adapter
| Connection at the telescope side: |
M117x1 thread (female), 8 mm deep |
| Connection threads at camera side: |
M100x1 (non rotatable), M92x1 and M68x1 thread (all three female) |
| Connectors at eyepiece side: |
2″ and 1,25″ with compression ring - self centering |
| Minimal height (retracted): |
103 mm (end of M100 thread) |
| Maximum height (retracted): |
172 mm (end of 1,25″ adapter) |
| Drawtube travel: |
98 mm |
| Clear aperture: |
102 mm with anti-reflection thread |
| Speed reduction: |
1/10 mikro transmission |
| Payload: |
up to 9 kg |
| Weight with rotation adapter: |
2040 g |
