  • ZWO ASI432MM Mono USB3.0 Astro Camera - Sensor D=17.6 mm, 9.0 µm Pixel Size
  • ZWO ASI432MM Mono USB3.0 Astro Camera - Sensor D=17.6 mm, 9.0 µm Pixel Size

    • Číslo produktu: ASI432M
    • Výrobca: ZWO
    • Váha dodávky: 0.126 kg

    Naša cena: 833 €
    1-2 týždne
    Sledovať dostupnost - ZWO ASI432MM Mono USB3.0 Astro Camera - Sensor D=17.6 mm, 9.0 µm Pixel Size
    Chcem byť informovaný až bude tovar na sklade

    *



Sensor: Sony 1.1" CMOS IMX432LLJ-C (color)
Resolution: 1608 x 1104 pixels, 1.77 megapixels
Pixel size: 9.0 µm
Sensor size: 14.5 mm x 9.95 mm
Sensor diagonal: 17.6 mm
Exposure time: from 32 µs - 2000 s
Capture speed: up to 120 fps at full resolution
ROI: Supported

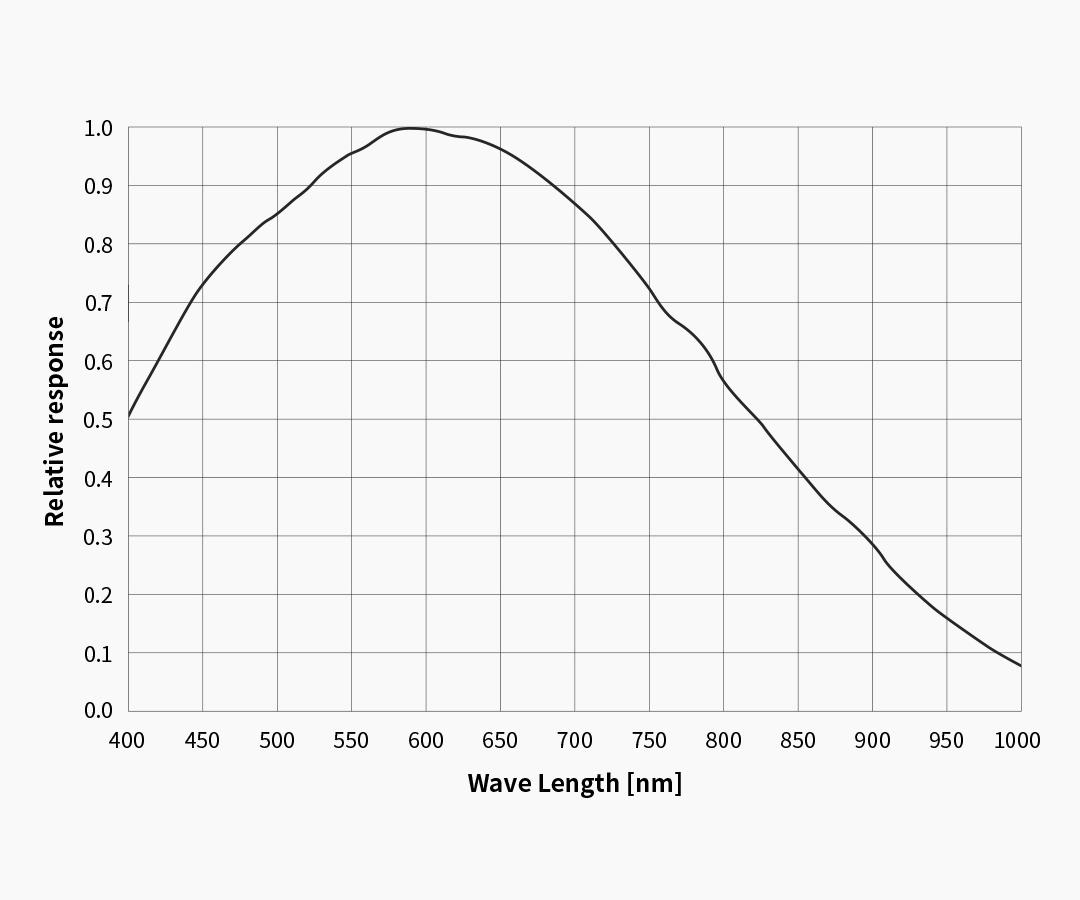

Quantum efficiency: 79%
ADC: 12 bit
Full well: 97 ke
Anti amp glow circuit: Yes
Readout noise: 2.4 e- to 20.8 e-
ST4 autoguider port: Yes
Distance from T2 female thread to sensor: 17.5 mm
Distance from T2 male thread: 6.5 mm (the male thread does not count)
Shutter type: Global shutter
Protection window: AR dust protection window (UV and IR light are transmitted)
Connection: USB3.0/USB2.0
Bit resolution: 12 bit output (12 bit ADC)
Telescope connection: 2″ / 1.25″ / M42x0.75

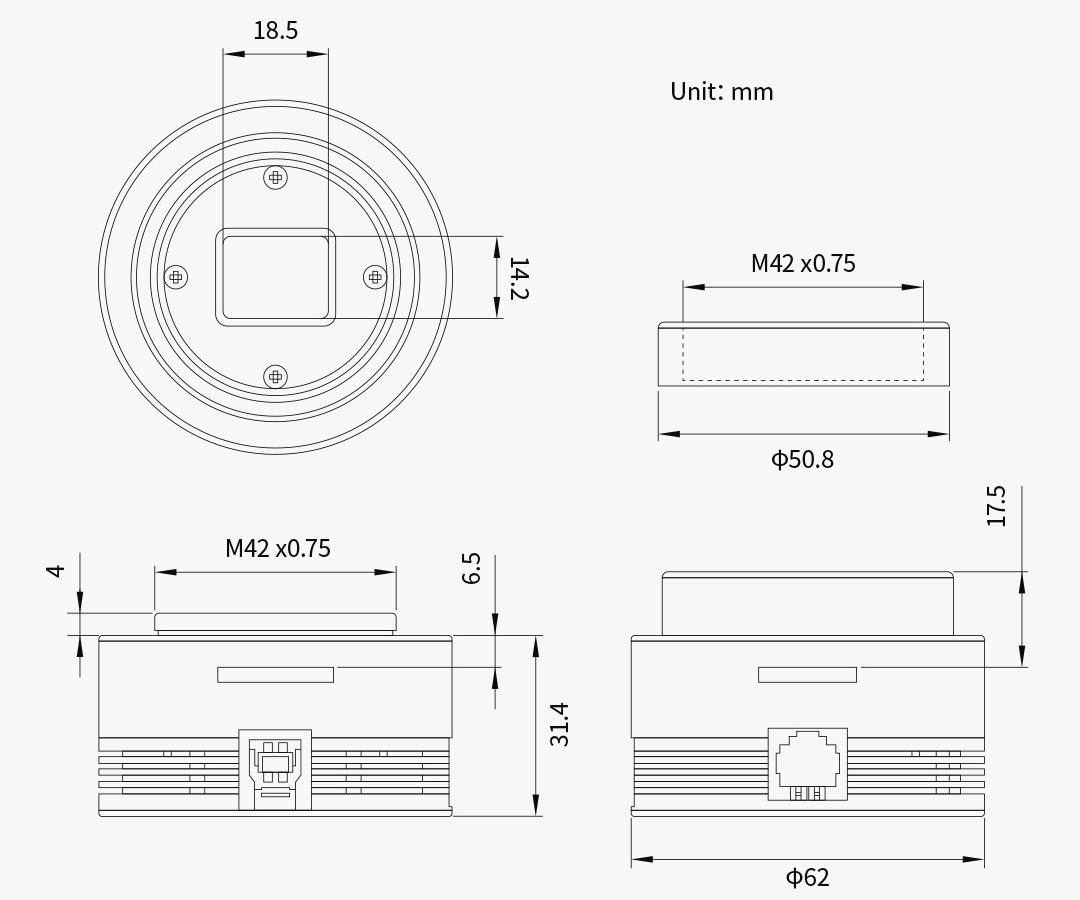

Dimensions: ⌀ 62 mm x 36 mm resp. ⌀ 62 mm x 43 mm
Weight: 126 g
Operating temperature: -5 °C to +50 °C
System requirements: USB 3.0 should be supported by the operating system - Windows 8 or higher, Mac OS X 10.8 or higher, Linux kernel 2.6.31 (Ubuntu 16.04 or higher)
Weight: 126 g

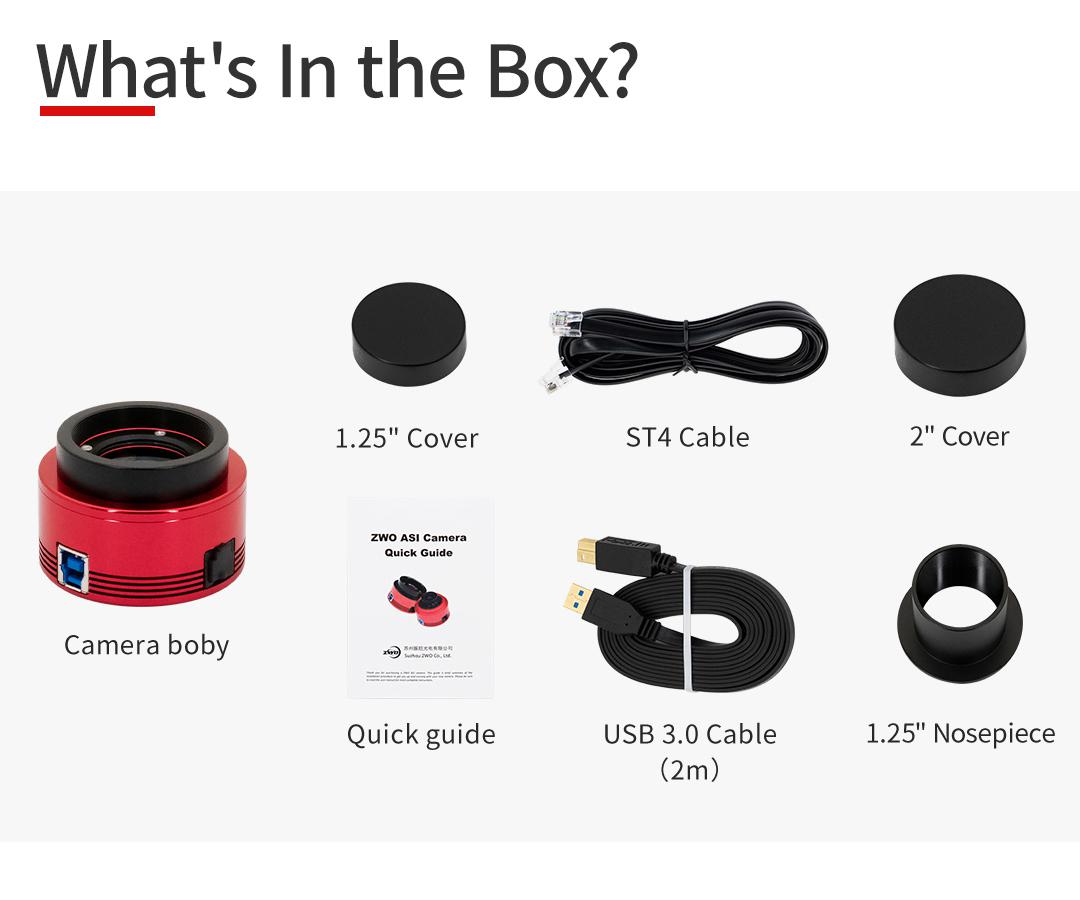

Obsah balenia:
ASI camera
2″ cover
1,25″ nosepiece
1,25″ cover
USB 3.0 cable
ST4 cable
Quick Start Guide
