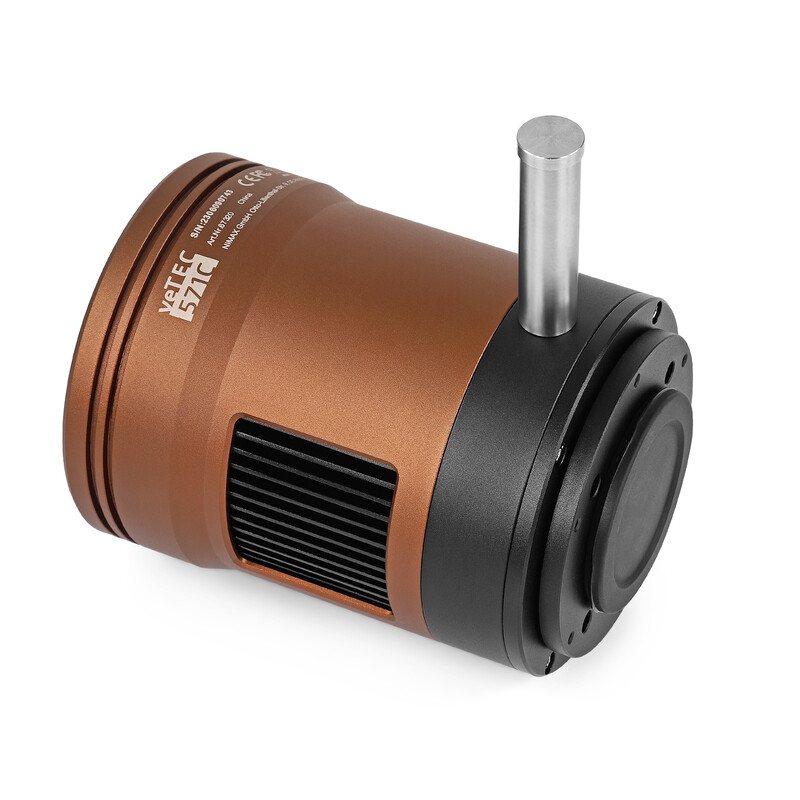

  • Farebná kamera Omegon veTEC 571 C Color
  • Farebná kamera Omegon veTEC 571 C Color

    • Číslo produktu: 67320
    • Výrobca: Omegon
    • Váha dodávky: 0.54 kg

    Naša cena: 1674.95 €
    Na objednávku - viac ako mesiac
    Sledovať dostupnost - Farebná kamera Omegon veTEC 571 C Color
    Chcem byť informovaný až bude tovar na sklade

    *

The Omegon Pro veTEC 571 C features the new Sony IMX571 sensor. With a pixel size of 3.8µm this camera in APS-C format is the big brother of the veTEC 533 C

  • APS-C format
  • high quantum efficiency (~80%)
  • low readout noise (~ 1.5e-)
  • high full-well capacity (50,000 e-)
  • ADC: 16-bit
  • Zero-Amp-Glow: No amplifier glow

Professional Deep-Sky Astrophotography: The giant sensor is perfect for wide nebulas, star fields or the lunar surface. Compared to other astrophotography cameras, this one is more akin to the generously sized sensors in DSLR-cameras.

Thermoelectric cooling: The cooling system reduces noise in the image. At 40°C below ambient temperature, the noise caused by dark current is almost completely gone. In addition, the precise control of the sensor's temperature is very helpful for calibrating your astrophotos with dark frames: They all can be made at the correct temperature. The final images are impressively clean.

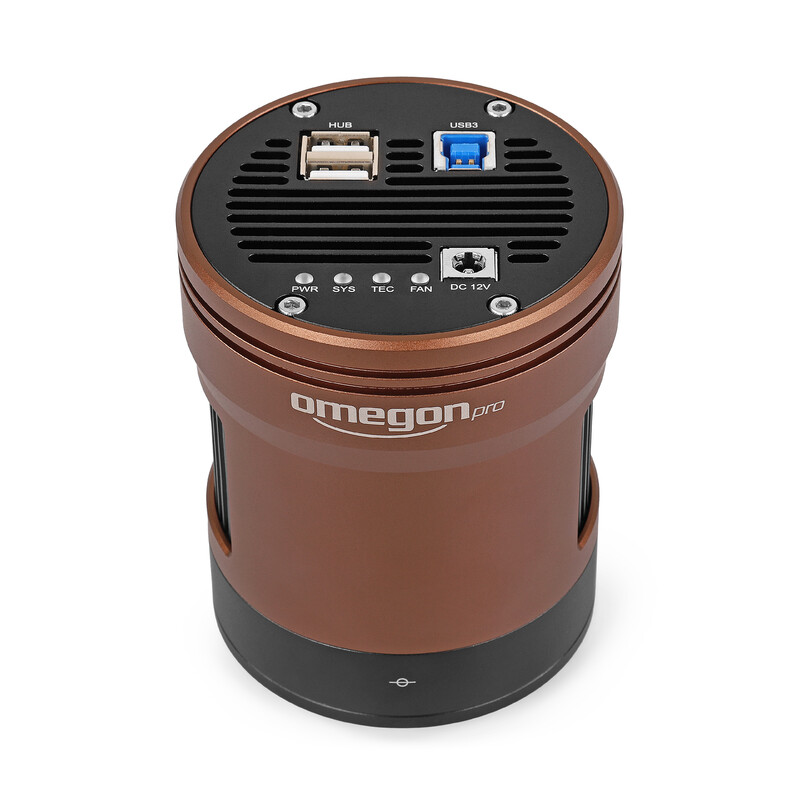

USB-Hub: 2 USB ports at the back of the camera are reducing the cable chaos of your astrophotography setup. Additional devices (for example guiding cameras) can be daisy chained through this hub. A separate cable connection to your pc for every single device is now a thing of the past.

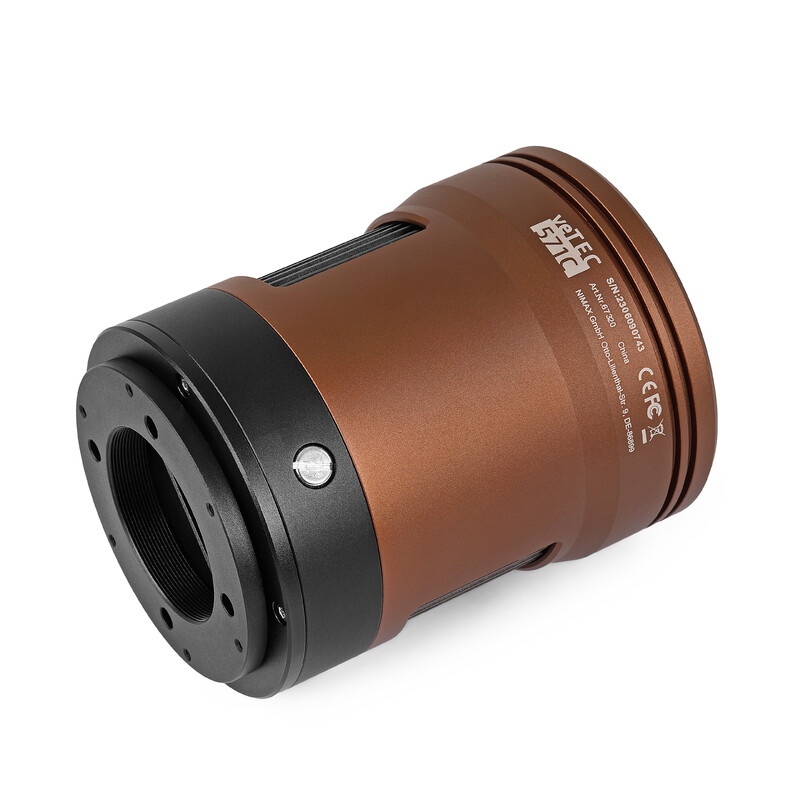

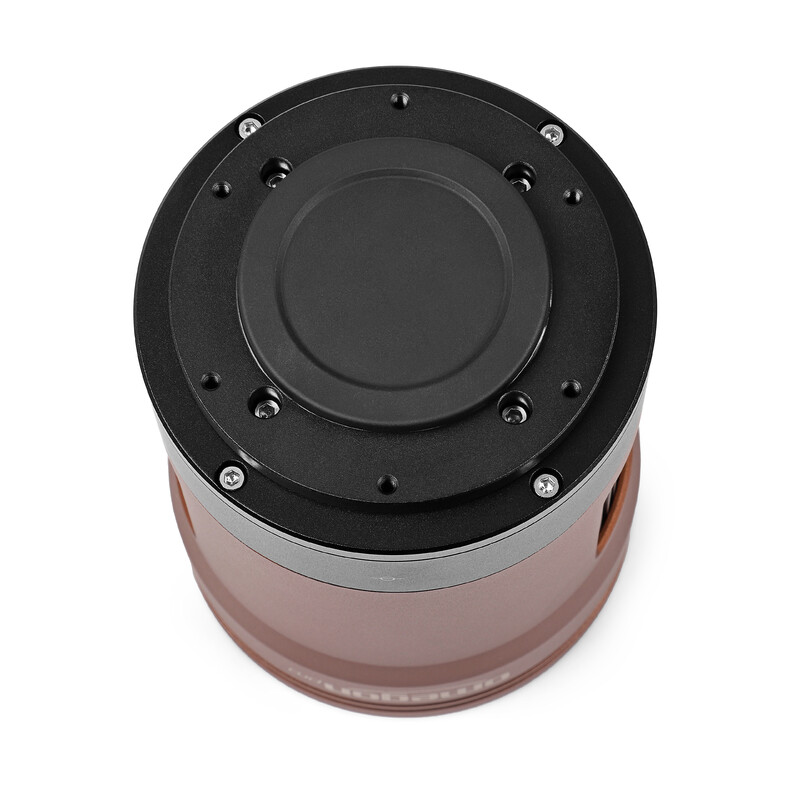

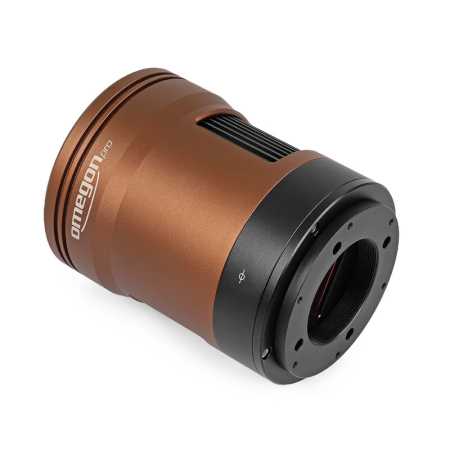

The camera can be adapted to almost any astrophotography setup, thanks to a T2 thread and a short back focus of only 17.5mm. Of course a 2″ nosepiece adapter allows you to simply connect the camera like any 2″ eyepiece.

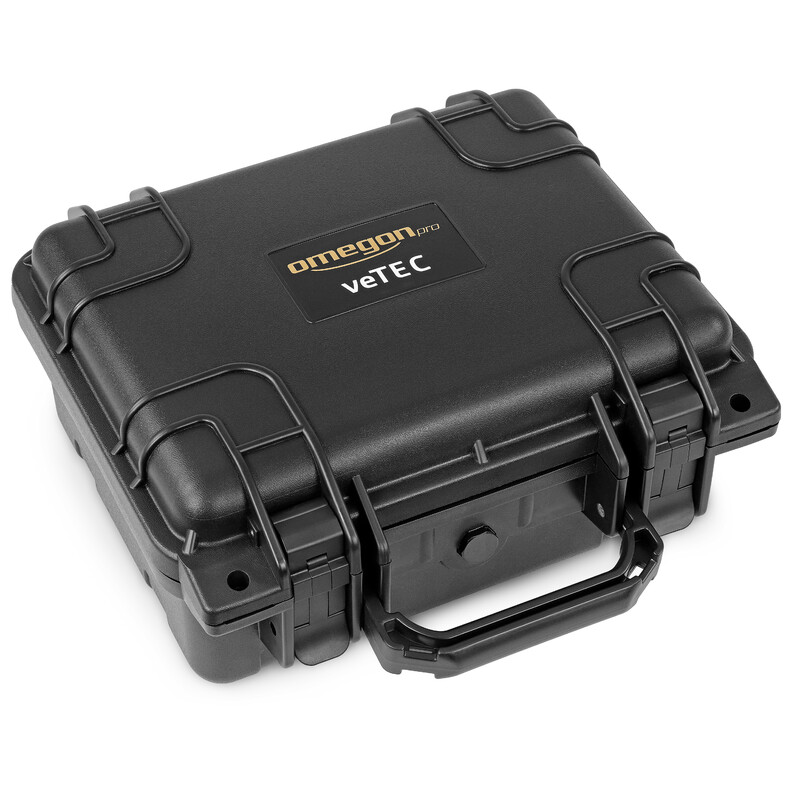

The provided sturdy case with fitting foam inlet gives anyone peace of mind when transporting or storing this valuable camera.

Professional planetary-, lunar- and solar-astrophotography: Capturing the shadows of Jupiter's moons, separations in Saturn's rings, detailed mountain ranges on the Moon or impressive prominences on the surface of the sun - these impressive targets in our solar system can only be photographed properly with a very high framerate: This freezes the so called seeing, turbulences of the atmosphere that usually hide details from view. This 'lucky imaging' technique is now a breeze, thanks to sophisticated electronics and the high bandwidth of the camera's USB3.0. We recommend the Region-Of-Interest feature of the supplied Omegon AstroPhotoCapture software: This optimized the framerate by reading out only the relevant part of the sensor that contains the planet or detail you are interested in.

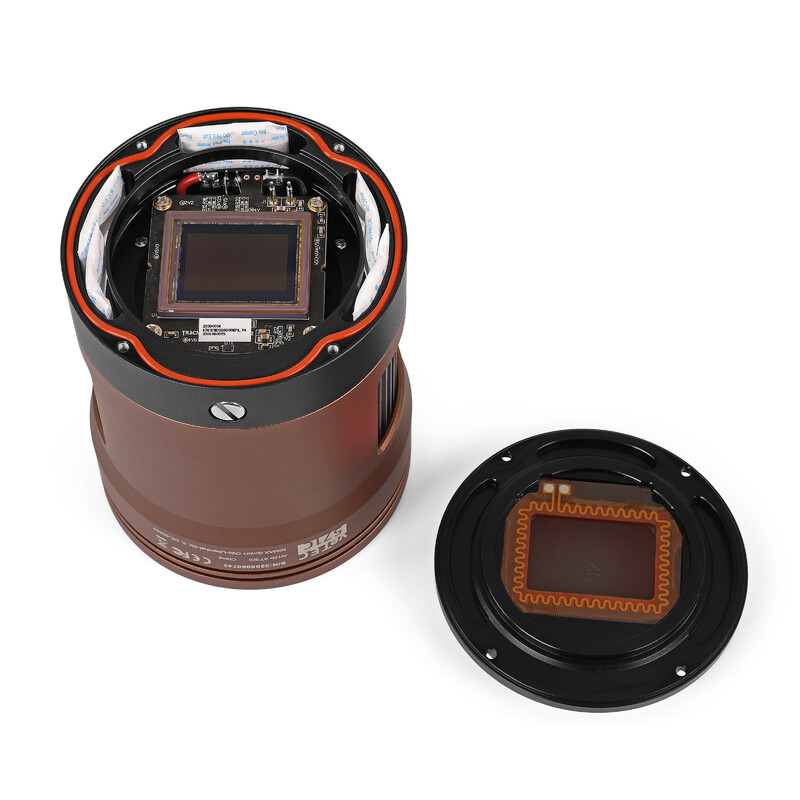

Transmission: A filter window protects the sensor chamber from dust and humidity. The Omegon Pro colour cameras are equipped with and infrared-blocking filter. Modern CMOS sensors are sensitive to infrared light, so a correct color representation in the final image is only possible by removing these wavelengths before capture. On the other hand, the Omegon Pro mono cameras feature an anti-reflection window, that is transparent to a wide range of wavelengths from the ultraviolet to the infrared. You can add your own filters for unrestricted control over your transmission curve - invaluable for advanced imaging and photometric applications.

Convenient Capture Software: The downlodable software Omegon AstroPhotoCapture allows straightforward and easy-to-learn camera control. The correct camera settings during the capture process are crucial for astrophotography. AstroPhotoCapture gives you full control over every parameter of your camera, without an overburdening interface. Easy to follow tutorials cover the capture process step for step, to make your first astrophotography session successful. The software is compatible with Windows 8/10/11.

Compatibility: The Omegon Pro cameras are compatible with a wide range of available astrophotography programs through the common interfaces ASCOM and INDI. Native compatibility is also being added to a growing number of programs, like PHD2 and N.I.N.A.



Capacity
Sensor type CMOS Chip (Sony IMX571)
Size of chip(mm) 23.5 x 15.7 (APS-C)
Chip - Diagonal(mm) 28.3
Pixel size 3.8
Resolution Photograph(Pixel) 6224 x 4168
Megapixel 26
Bit depth(Bit) 16
Images per second 7 (at full resolution)
Colour camera yes
Active cooling yes
Max. cooling difference below room temperature -40°C
Power supply 12 (3A)
Interfaces USB 3.0 (2x USB2.0 Hub)
Autoguider no
Supported operating systems Windows 7/8/10 (Linux (INDI))
Connection (to the telescope) 2″
Filter thread yes (2″)
Flange focal distance(mm) 17.5
Software download
Operating temperature -10°C - +50°C
Binning 2x2, 3x3, 4x4 (Digital)
buffer memory(Megabyte) 512
Internal memory DDR3 RAM
Shutter Rolling Shutter
Equipment
Filter wheel no
Transport cases yes
Other contents USB cable
Connection (to the telescope) T2 (M42 x 0,75)
Power pack yes
General
Series veTEC
Length(mm) 104
Diameter(mm) 84
Weight(g) 540
Outer material Aluminium
Colour Bronze
Type Camera
Type of build Astronomical Cameras
Area of application
Autoguider no
Moon & Planets yes
Nebulae & galaxies yes
AllSky, Meteore no

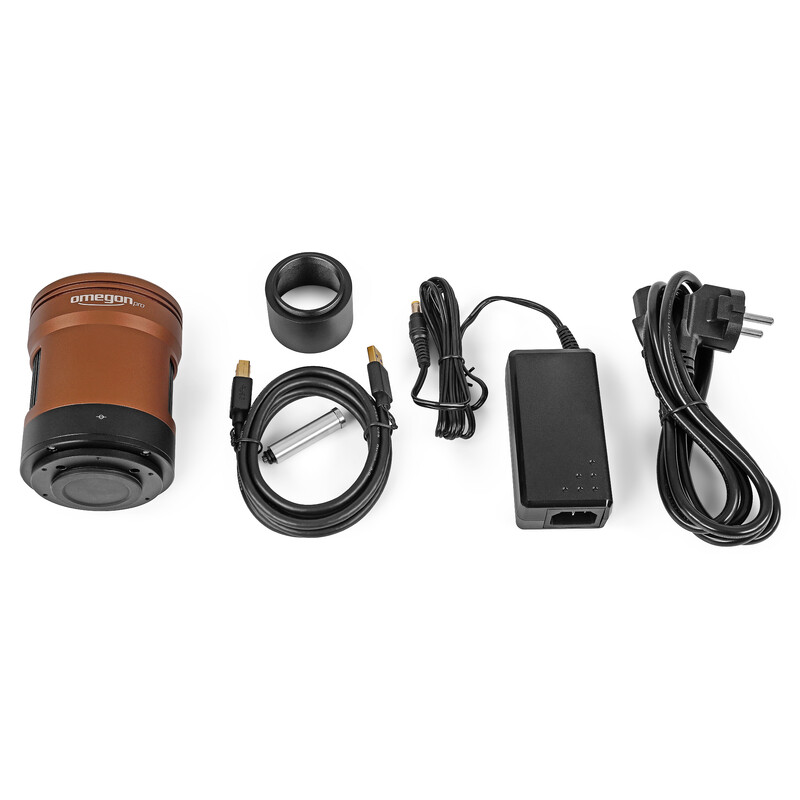

Obsah balenia:
Camera
T2 to 2″ adapter
USB 3.0 Cable
12V 3A Power Supply (EU-Plug)
Sturdy carrying case
Desiccant plug
