Helical výťah TS Optics 1,25″ (M54)

Číslo produktu: TSHeliM54
Výrobca: TS Optics

Naša cena: 81 €

1-2 týždne

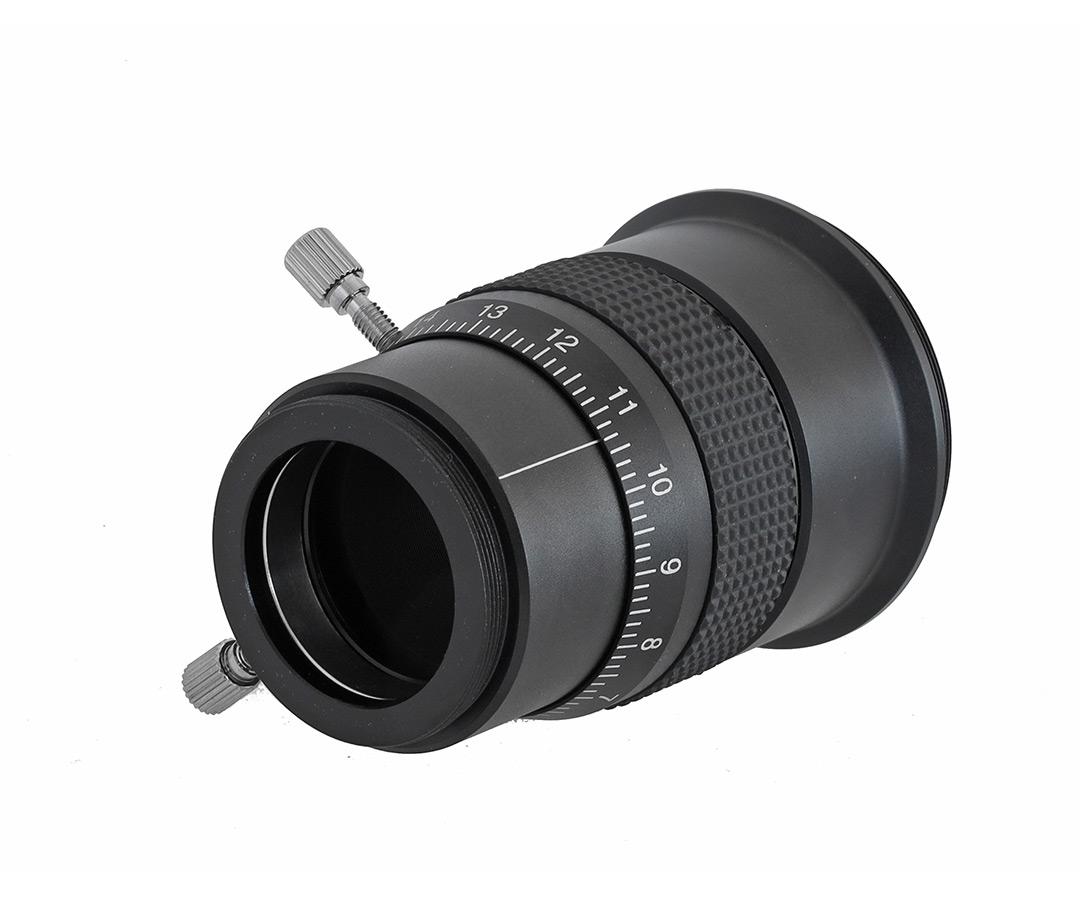

TS-Optics Micro Helical focuser with adjustment scale

The focuser fits all adapters and focusers with the M 54x0.75 female thread on the eyepiece side. A sensitive mechanism allows the focus to be set just as accurately as with a manual camera lens.

On the eyepiece or camera side, a T2 male thread (M42x0.75) and a 1,25″ receptacle are available. There you can connect eyepieces, projection adapters or cameras.

When the focus point is reached, the position can be fixed with a knurled screw. This prevents unintentional adjustment.

Principle:	Non-rotating helical focuser
Connection telescope side:	M54x0.75 external thread - length 5 mm
Connection camera side:	T2 external thread and 1,25″ receptacle
Minimum length of the extension:	74.5 mm
Focuser travel:	11 mm
