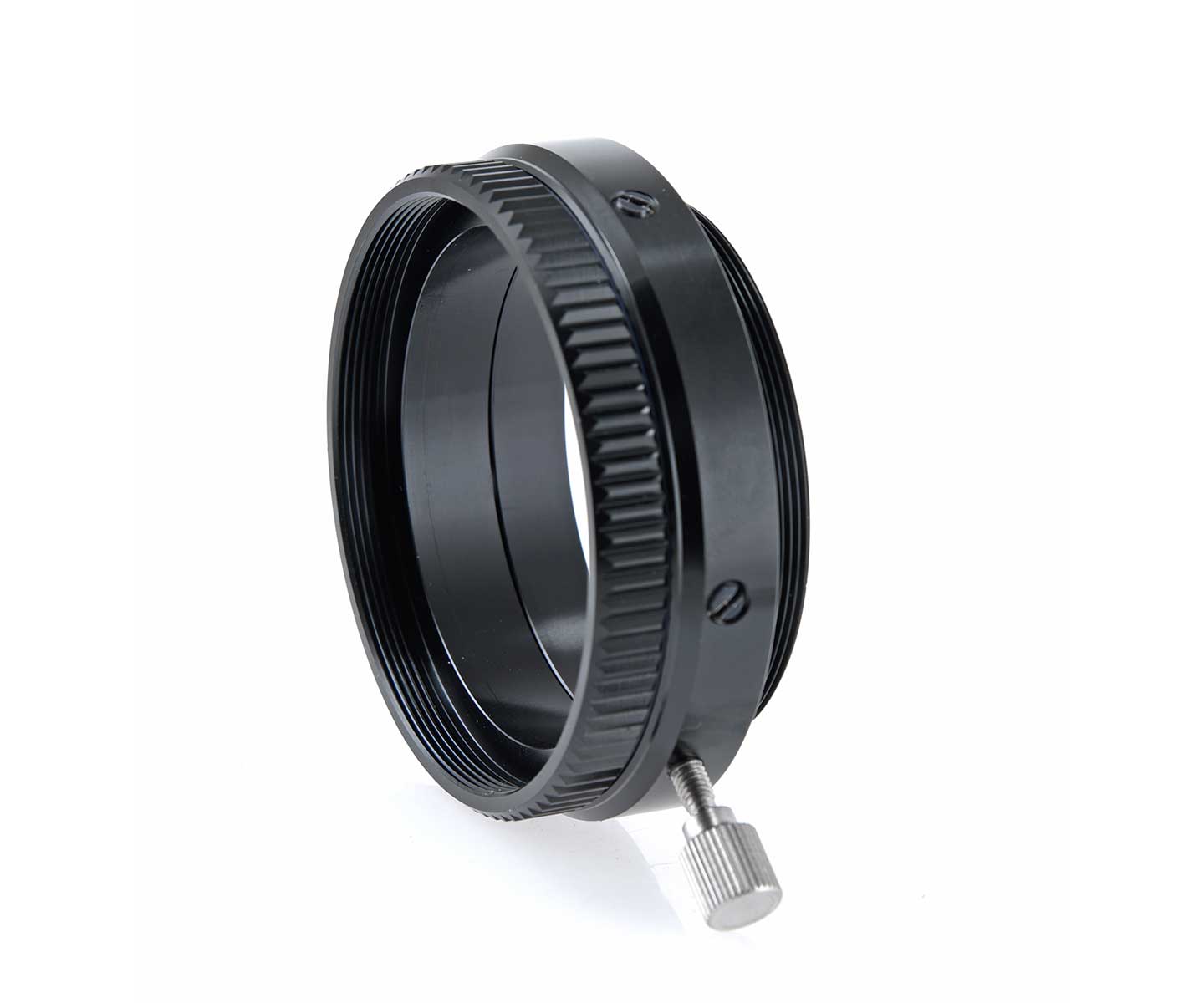

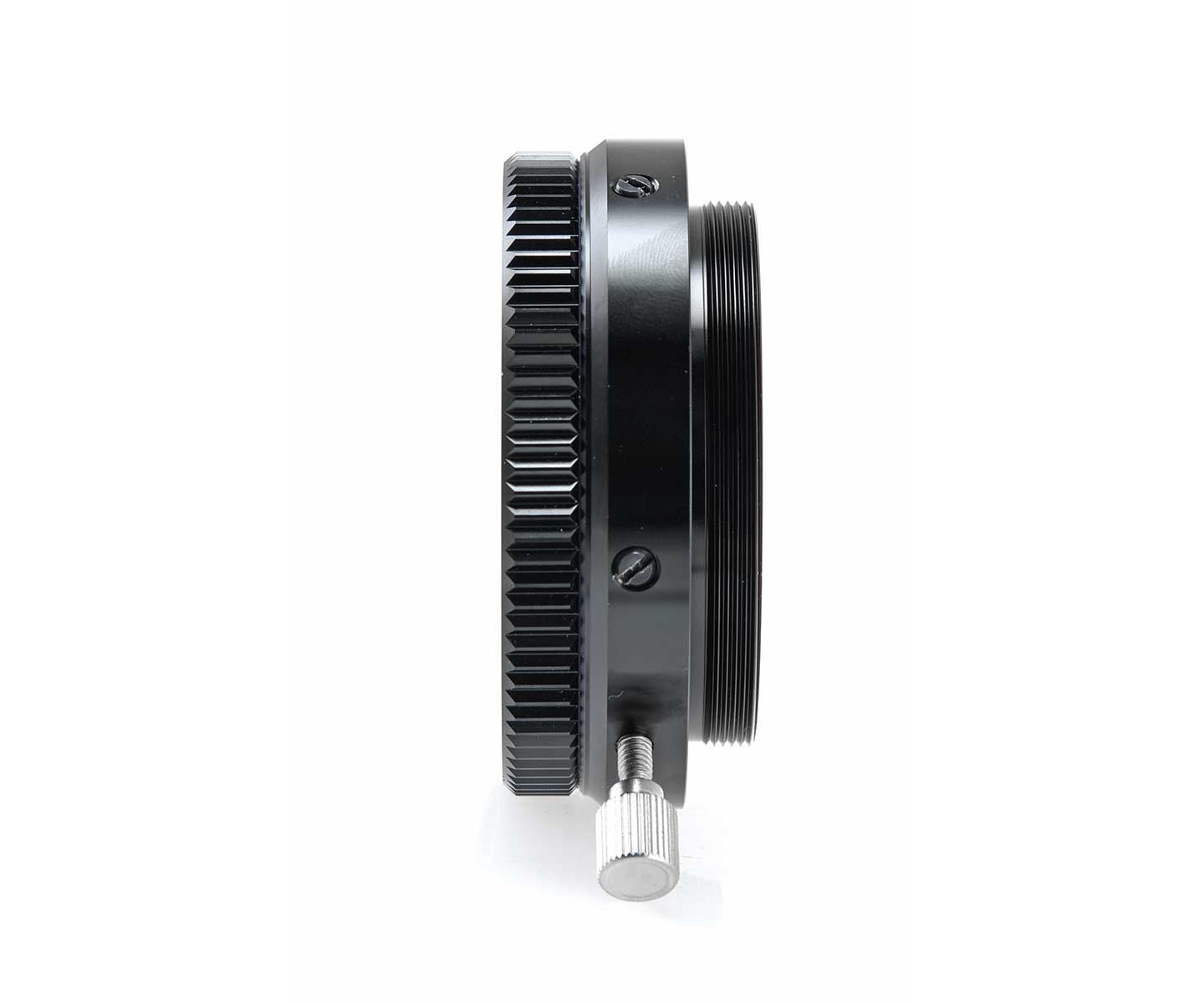

TS-Optics 360 Rotation Adapter with 20.9 mm Length

This rotation adapter is a real problem solver from Teleskop-Service for all astrophotographers. It fits directly on all focusers with the M63x1 internal thread, such as the Starlight Feathertouch 2.5" focuser, but also many focusers from TS.
The adapter offers a comfortable 360 rotation with a short overall length. A large knurled screw is used to fix the wanted position.
The adapter has an M68x1 internal thread on the camera side and accepts many professional correctors which have the corresponding external thread on the telescope side.
With the optional adapter # M68a-M63i you reduce the M68x1 internal thread to M63x1. Due to the short overall length of only 1mm you get a rotation adapter with M63 thread on both sides (internal/external) with only 21.9mm overall length.

The advantages of the TSROTM63 adapter:

♦ Only 20.9 mm optically effective overall length
♦ Effective adaptation from M63 to M68
♦ Perfect centering - the inner adapter ring is always exactly in the middle - due to the clamping it tightens itself
♦ Due to generously dimensioned wall thickness and long threads, even heavy accessories can be mounted safely.
♦ The resistance of the rotation can be adjusted via 5 grub screws. The clamping itself is then only done via the knurled screw.

Connection thread telescope side: M63x1 male thread - length 8 mm
Connection thread camera side: M68x1 female thread - length 7 mm
Clear aperture: 59 mm
Outer diameter: 78 mm
Effective optical length: 20.9 mm (without the M63x1 external thread)
Clamping: Fixing of the adapter position by 3x M4 knurled screws
Obsah balenia:
TS M68/M63 rotation adapter
