  • TS Optics 360° Rotation and Quick Changer - M54x0.75 - 10 mm short
  • TS Optics 360° Rotation and Quick Changer - M54x0.75 - 10 mm short

    • Číslo produktu: TSROTM54K
    • Výrobca: TS Optics

    Naša cena: 121 €
    1-2 týždne
    Sledovať dostupnost - TS Optics 360° Rotation and Quick Changer - M54x0.75 - 10 mm short
    Chcem byť informovaný až bude tovar na sklade

    *

  • Tento produkt je dostupný tiež v nasledujúcich variantách:
     TS Optics 360° Rotation Adapter for M54x0.75 60.60 €
     TS Optics 360° Rotation and Quick Changer - M48x0.75 - short 63.50 €
     TS Optics 360° rotation and quick coupling SC to M48 thread - short design 63.50 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - M48 thread 69.90 €
     TS Optics 360° Rotation Adapter - M63x1 male Thread - M68x1 female Thread 70.95 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - T2 thread 72 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - M42 to T2 thread 72.60 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - M48 to T2 thread 72.60 €
     TS Optics 360° rotation and quick coupling and adaptation from M54 to M48 93 €
     TS Optics Rotation Adapter, Filter Holder and Quick Coupling - M54x0,75 thread 99.90 €
     TS Optics 360° Rotation and Quick Changer - M68x1 - short 106.25 €
     TS Optics 360° Rotation and Quick Changer - M63x1 - 10 mm short 119.90 €
     TS Optics 360° Rotation and Quick Coupling - M54x1 for Skywatcher focusers 119.90 €
     TS Optics 360° Rotation and Quick Changer - M54x0.75 - 10 mm short 121 €

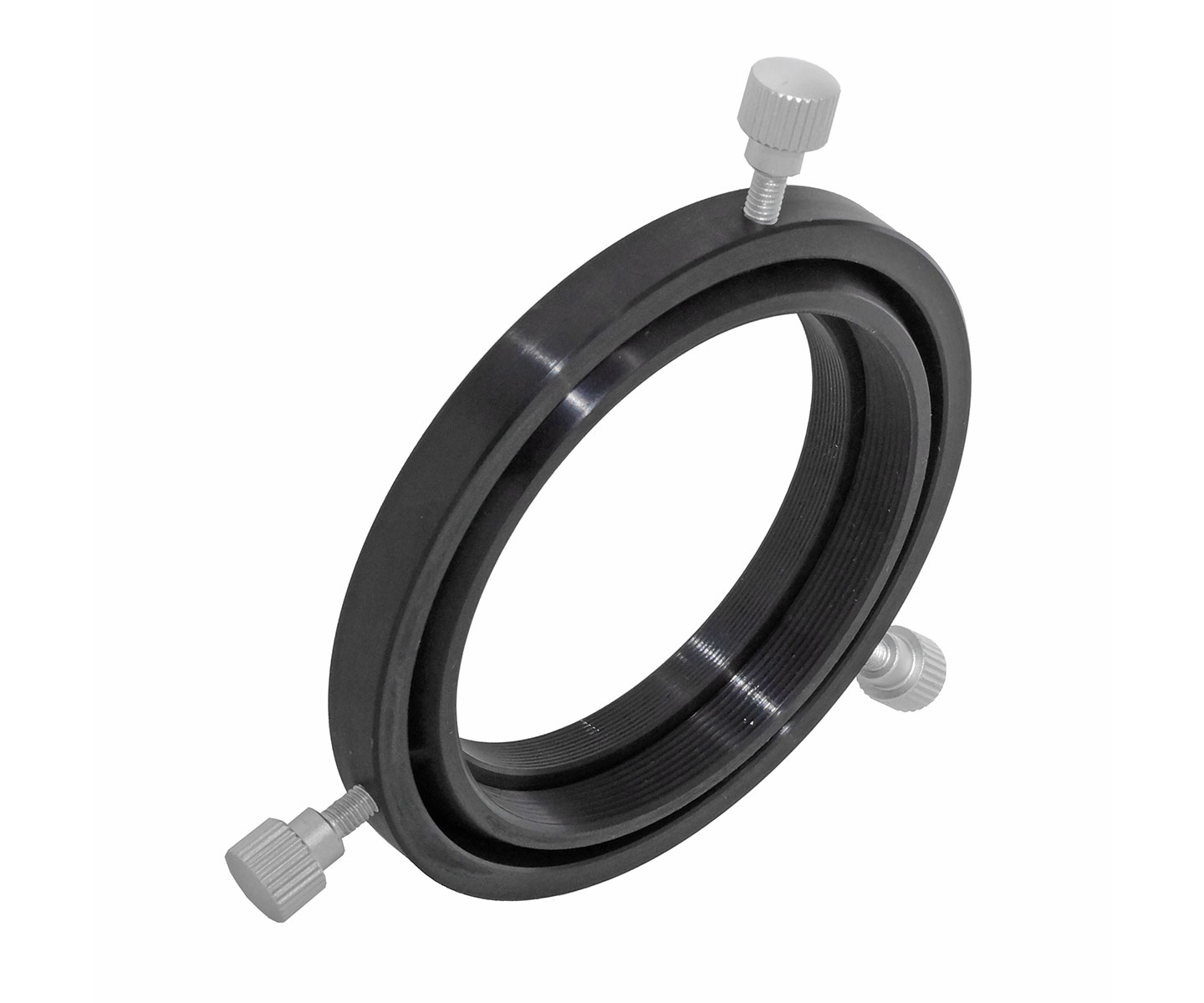

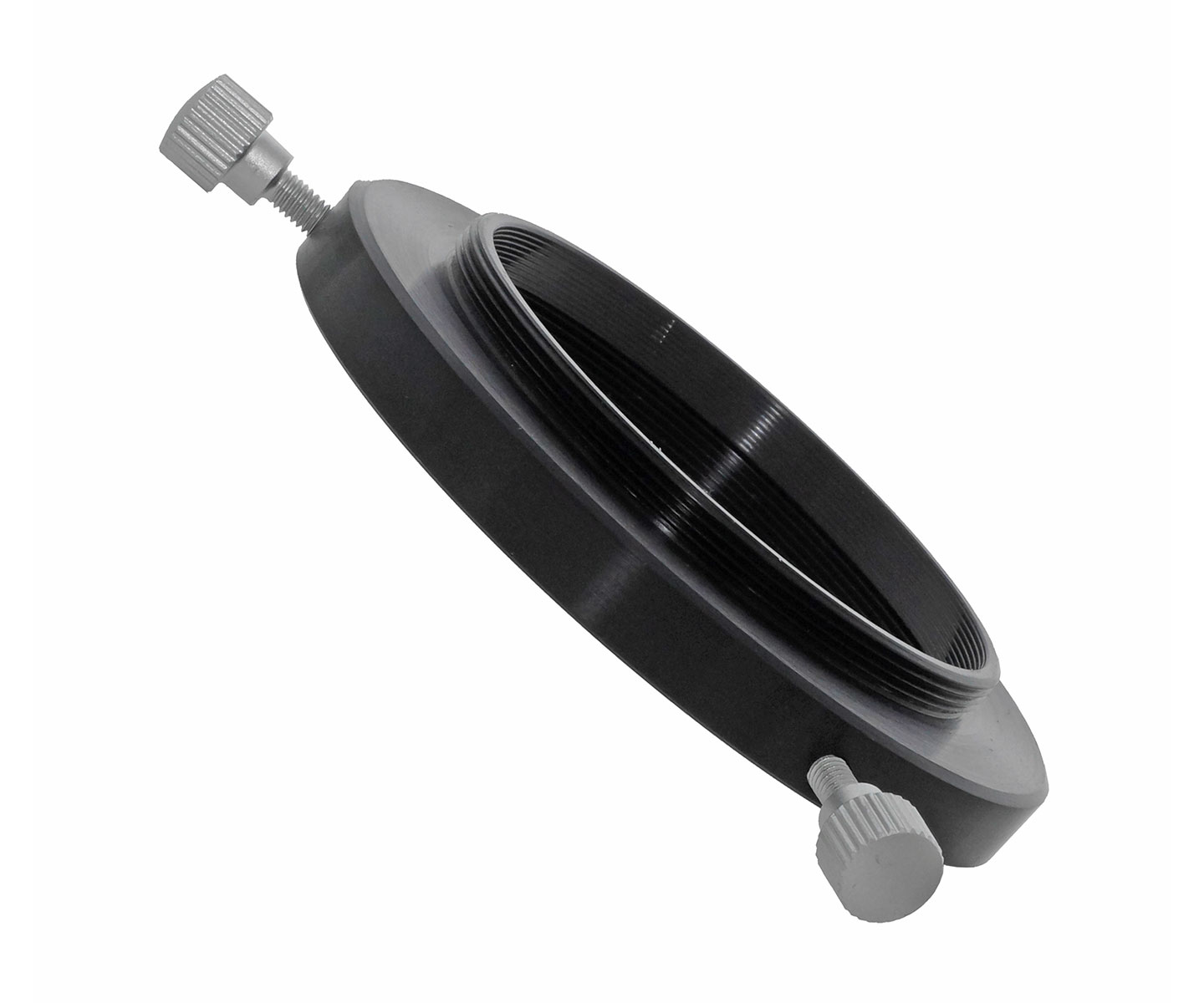

TS-Optics M54x0.75 Rotation and Quick Changer with only 10.5 mm length

This adapter is a true problem solver from Teleskop-Service for all astrophotographers who work with big cameras with M54x0.75 connection. The adapter provides a quick changer and a 360 rotation at minimal length. Slip-proof knurled head screws allows handling even with gloves.

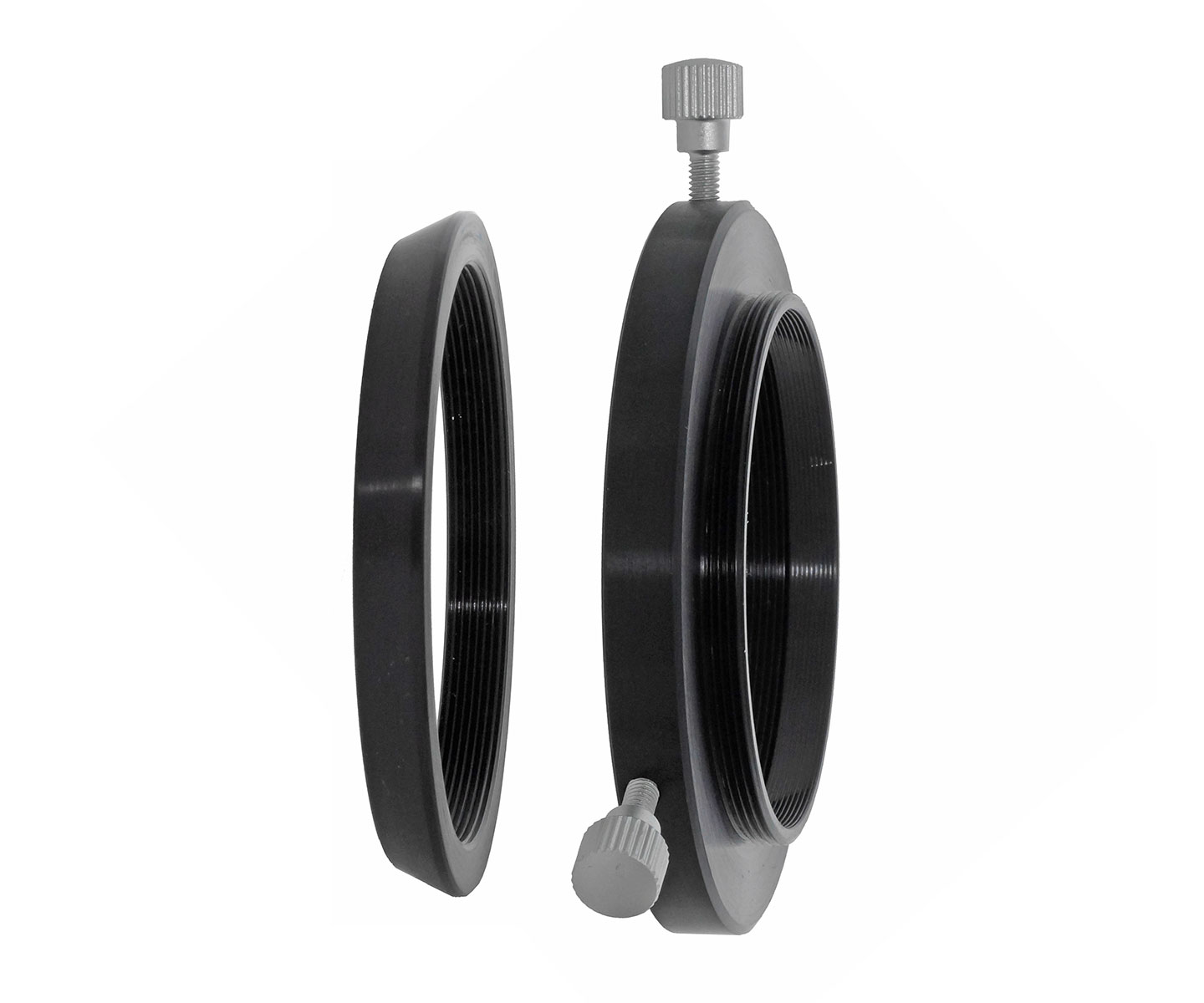

The rotation adapter consists of two parts. The inner, conically tapered adapter establishes connection to the telescope or corrector. The outer adapter holds the connection adapter with three screws and establishes the connection to the camera.

The advantages of the TSM54ROTK adapter:

♦ Only 10 mm optical path - ideal for short adaptions
♦ Perfecte centering - the inner adapter ring is always in the middle - by clamping, it automatically tightens itself.
♦ The free inner diameter is 51 mm, so the adapter offers free passage for 2″ sockets - for example when a corrector is screwed to the focuser and must be rotatable.

The application fields of the TSM54ROTK adapter:

♦ Quick changer: ... you can detach the camera within seconds, for example for removing dust from the sensor. Unscrewing is prevented, the cables cannot tangle up.
♦ 360 rotation: ... you can turn the camera by 360, thus attaining an optimal placement of the object on the camera sensor.
♦ Improved search for a guiding star when using an off-axis guider: ... if you insert the TSROTM54K in front of the off-axis guider, you can rotate the guider and have a larger field for finding a bright guide star at your disposal.

Connection thread telescope side: M54x0.75 (female) - length 8 mm
Connection thread camera side: M54x0.75 (male) - length 3.5 mm
Optical path: 10 mm (without the male M68x1 thread)
Free inner diameter: 51 mm
Clamping: Locking of the adapter position by 3x knurled M4 screws
Obsah balenia:
TS rotation adapter
