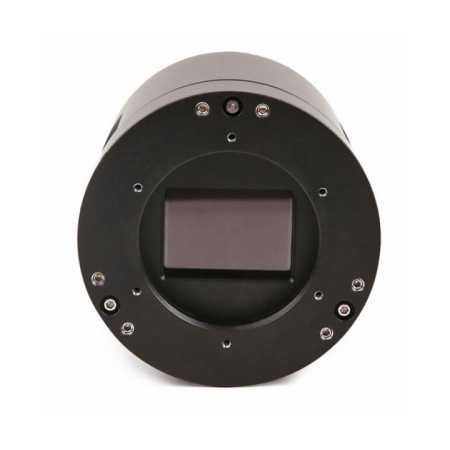

  • TS Optics ToupTek SkyEye24AC Full Frame Color Astro Camera, cooled - Sensor D=43.3 mm
  • TS Optics ToupTek SkyEye24AC Full Frame Color Astro Camera, cooled - Sensor D=43.3 mm

    • Číslo produktu: TS410CP
    • Výrobca: TS Optics
    • Váha dodávky: 0.718 kg

    Naša cena: 3037 €
    1-2 týždne
    Sledovať dostupnost - TS Optics ToupTek SkyEye24AC Full Frame Color Astro Camera, cooled - Sensor D=43.3 mm
    Chcem byť informovaný až bude tovar na sklade

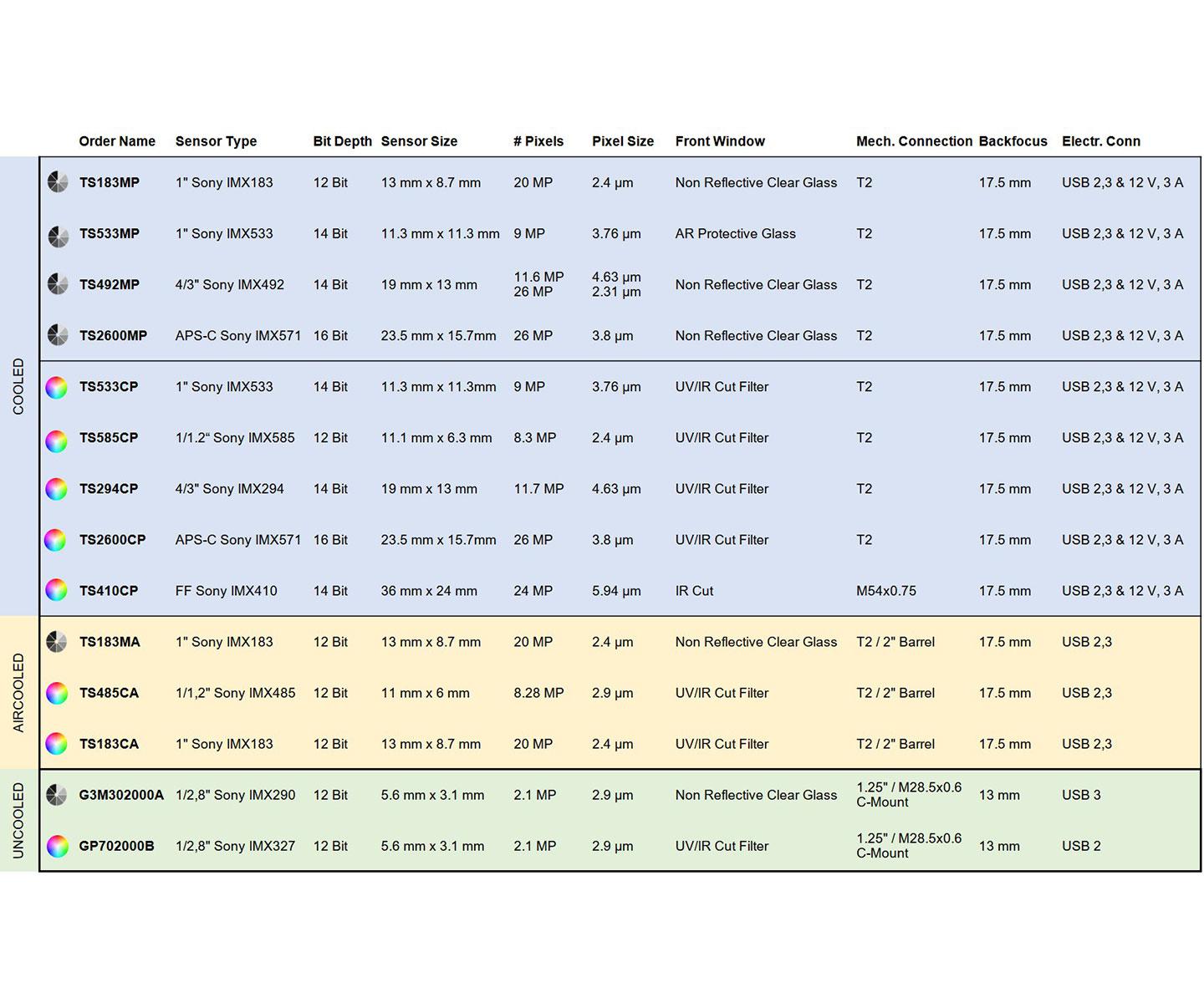

  • Tento produkt je dostupný tiež v nasledujúcich variantách:
     TS Optics ToupTek Color Astro Camera 585CP Sony IMX585 Sensor D=12.78 mm 803 €
     Chladená farebná kamera TS Optics ToupTek Color 294CP Sony IMX294 1155 €
     Chladená farebná kamera TS Optics ToupTek 533CP G2 1175 €
     Chladená monochromatická kamerano TS Optics ToupTek 183MP 1216 €
     TS Optics ToupTek Mono Astro Camera 533CP Sony IMX533 Sensor D=16 mm 1360 €
     TS Optics ToupTek MONO Astro Camera 492MP Sony IMX492 Sensor D=23.1 mm 1612 €
     TS Optics ToupTek Color Astro Camera 2600CP Sony IMX571 Sensor D=28.3 mm 1714.95 €
     TS Optics ToupTek MONO Astro Camera 2600MP Sony IMX571 Sensor D=28.3 mm 2031.50 €
     TS Optics ToupTek SkyEye24AC Full Frame Color Astro Camera, cooled - Sensor D=43.3 mm 3037 €

TS SkyEye 24AC Full Frame Color Astro Camera with Peltier Cooling

This modern camera uses the latest Sony IMX410 14-bit back-illuminated ADC sensor in full-frame format. With 5.94 m pixels, the camera can be used on almost all astronomical telescopes with good illumination.
Due to the high sensitivity of about 80% QE we recommend the camera also for somewhat slower telescopes like RC, EHD, ACF Cassegrains or also refractors. Even at f/7 or f/8 beautiful astrophotos can be taken in only one night.
The "single-shot" color camera offers more convenience compared to monochrome cameras. Not everyone wants to use the laborious L-RGB process for beautiful colored nebula images or planetary images. The color cameras offer you the possibility to get beautiful images without changing filters. But in direct comparison to the DSLR camera, the color camera convinces with a disproportionately higher light sensitivity, a smoother image and much more depth. Stars do not burn out as quickly.

Back-illumination technology:

Sony´s back-illuminated CMOS imaging sensor improves sensitivity and noise reduction - key factors in improving image quality - by changing the basic pixel structure from front- to back-illuminated. The advantages of CMOS image sensors, such as low power consumption and high operating speed, have been retained.
The back illumination improves the light acquisition and increases the amount of light at the same time. This makes significantly shorter exposure times possible and leads to an improved quantum efficiency of 80 %.
Sony has developed a unique photodiode structure and on-chip lens optimized for backside-exposed structures, this results in higher sensitivity and lower random noise without light by reducing noise, dark current and defective pixels compared to the conventional front-side-illuminated structure.

No amp glow:

Conventional CMOS sensors produce a faint infrared light source during operation, which can often be seen as a telltale sign of "amp glow" in the corners of uncalibrated images. Because this camera´s sensor uses zero amp glow circuitry, you don´t have to worry about "amp glow" even when using high-gain, long-exposure images.

Optimal support before and after purchase through Teleskop-Service

Through many years of experience, we can offer you optimal advice and also a very good after-sales service. We can perform almost all services at our premises. For a professional service we have among other things also a clean cabinet, where we can carry out repairs, cleaning etc. under dust exclusion.

Connection to correctors with M48 thread and 55 mm working distance with filter changer

Most coma correctors for Newtonians or field flatteners for refractors have 55 mm working distance and a M48x0.75 thread on the camera side. Here is an interesting suggestion for the connection. The camera has a back focus of 17.5 mm from the M54x0.75 female thread. Please note, however, that with very fast telescopes (f/4 or faster) even the M48 thread causes a slight edge shading. You can get rid of this with a "flat".
The adapters are from the camera to the corrector:
♦ # AFSM54-M54 - Antlia modular filter drawer with M54 thread on both sides - overall length 21 mm (the filter holder is still needed, matching filter holders are linked with the drawer)
♦ # TSM54a-M48i - TS-Optics adapter from M54 to M48 - length 1.5 mm
♦ # TSVF215 - TS-Optics M48 extension - overall length 15 mm

The manufacturer of the camera is ToupTek

As one of the largest manufacturers of professional cameras for digital photography, ToupTek brings the necessary knowledge for cameras that just work. Teleskop Service receives the cameras directly from the manufacturer, we are in direct contact with ToupTek to provide you with first class service.

Product video

Teleskop-Service has made an overview video for ToupTek´s cameras:


Sensor type: Sony IMX410
Sensor size: 36 mm x 24 mm, diagonal 43.3 mm
Pixel size: 5.94 m
Resolution: 6072x4042 (24 MPixel)
Shutter: Rolling Shutter
ADC: 14 bit
Cooling: Powerful Peltier cooling up to 35 C below ambient
Full well: 100 ke
Readout noise: 1.1 e - 6.4 e
Sensitivity: Peak 80% QE
Zero Ampglow circuit: Yes
Entry window: IR Cut Filter
Power requirements: 12 V, 3 A
Power connection: 5.5/2.1 mm coaxial power connector (2.5 mm DC connector)
Telescope connection: M54x0.75 female thread
Working distance from internal thread to sensor: 17.5 mm
Diameter: 89 mm - Height 103 mm
Weight: 0.718 kg

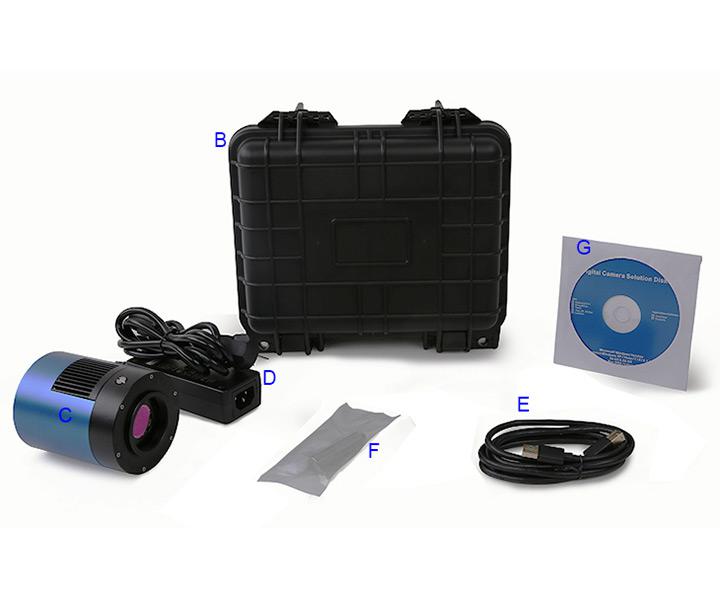

Obsah balenia:
Dust cap
Power supply unit
Mains cable for power supply
USB 3.0 high-speed cable - length 1.5 meters
Note with QR code and web link
CD with driver and software
Hard case
Desiccant tube
